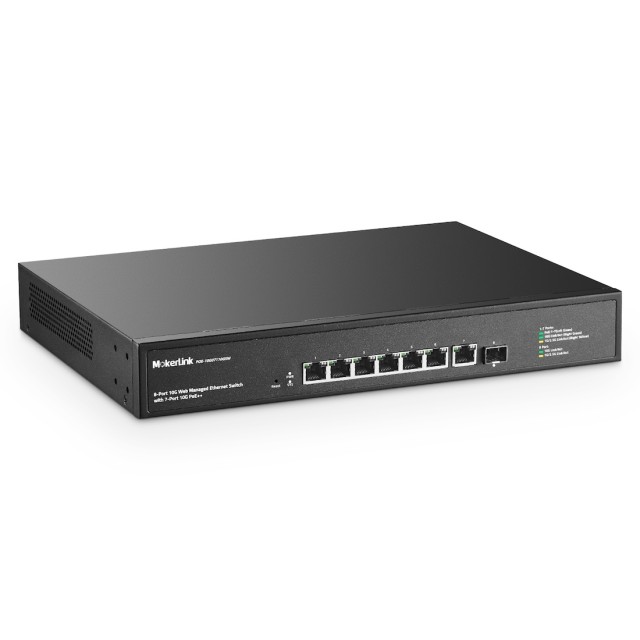

MokerLink 8 Port 10 Gigabit PoE Web Managed Switch with 10G SFP+, 7 Port PoE++ IEEE802.3af/at/bt 260W, Managed Rack Mount Network Switch

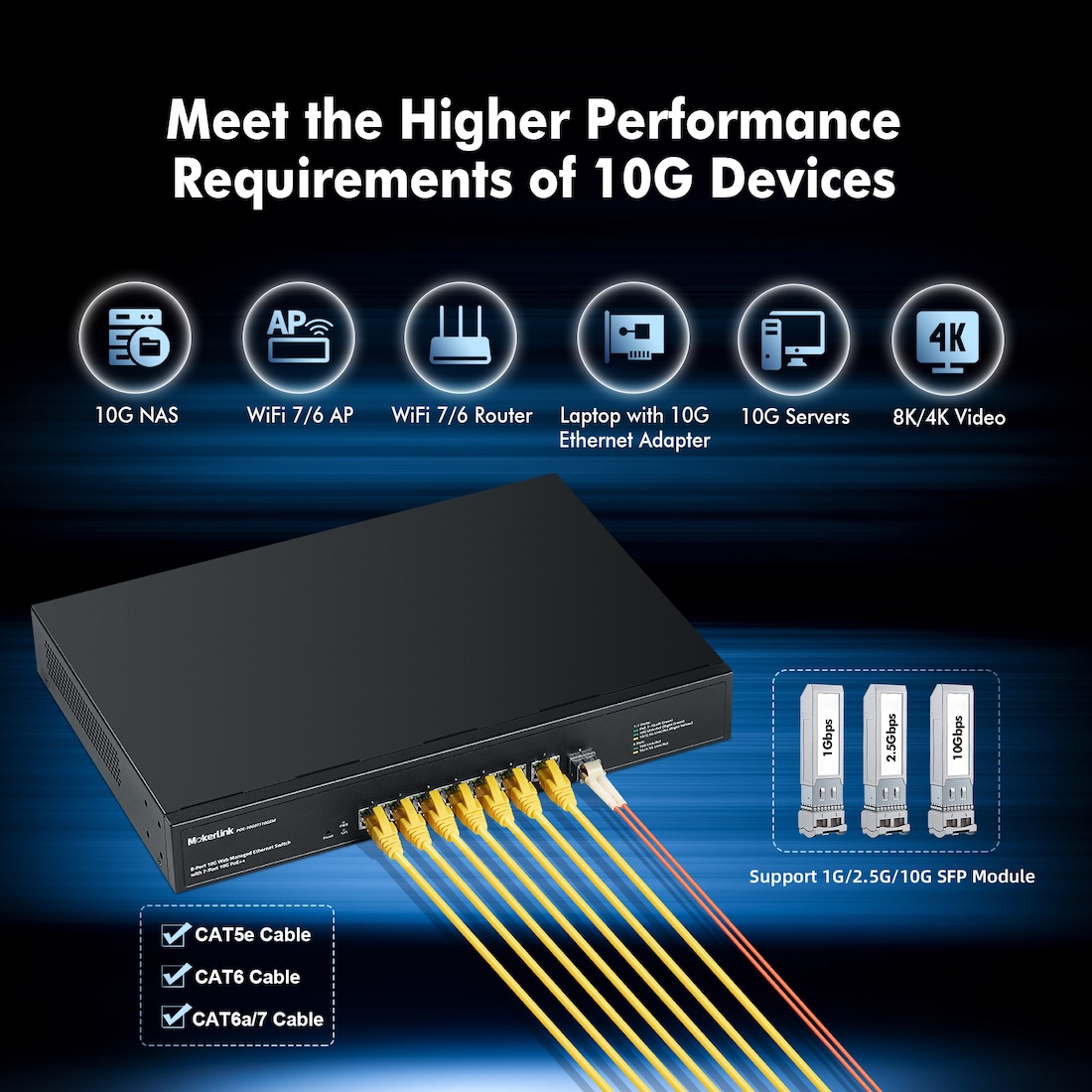

POE-10G07110GSM is a 10G Web Managed PoE Switch with 7x10GbE PoE++ and 1x10GbE SFP+ ports. 7 PoE ports provide either 100M,1G, 2.5G,5G and 10G connectivity and up to 260W PoE power, Support 802.3bt(Max.90W). 10G SFP+ port support 1G/2.5G/10G modules. It support L2 features, such as VLAN, QoS, LACP.
$369.99
Price drop reminder
- Brand: MokerLink
- Product Code: POE-10G07110GSM
- Availability: In Stock
Mobile
POE-10G07110GSM is a 10G Web Managed PoE Switch with 7x10GbE PoE++ and 1x10GbE SFP+ ports. 7 PoE ports provide either 100M,1G, 2.5G,5G and 10G connectivity and up to 260W PoE power, Support 802.3bt(Max.90W). 10G SFP+ port support 1G/2.5G/10G modules. It support L2 features, such as VLAN, QoS, LACP.
[Main Features]
- 7*10G RJ45 ports and 1*10G SFP+ port
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x standards
- RJ45 port supports 100M/1G/2.5G/5G/10G adaptive
- Support automatic port flipping (Auto MDI/MDIX)
- The panel indicator LED will monitor the working status and assist in fault analysis
- Flow control method, full duplex adopts IEEE802.3x standard, and half duplex adopts Backpressure standard
- Support QoS data priority

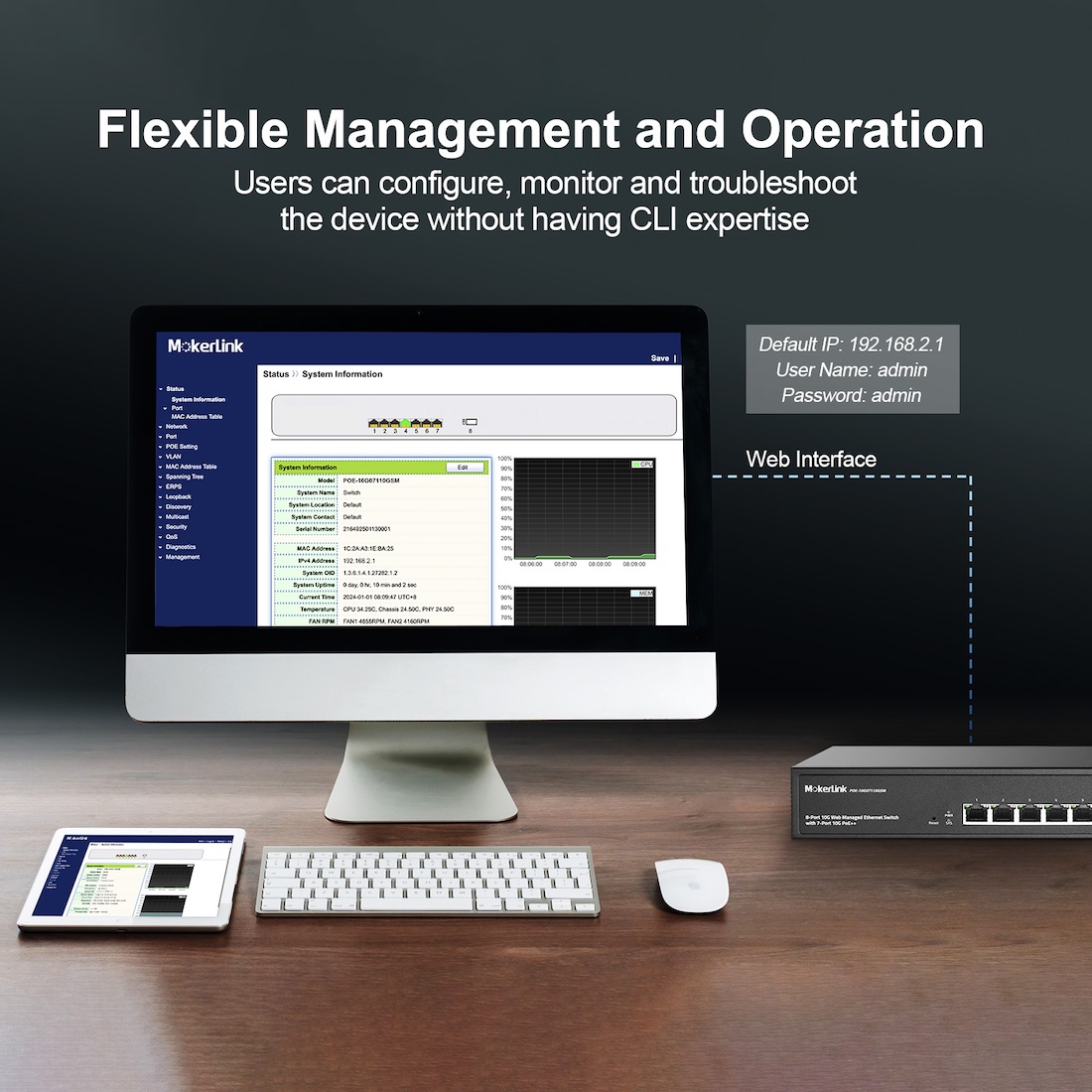

- Support web management
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | POE-10G07110GSM |
| Product Name | 8-Port 10G L2 Managed PoE Switch with 1-Port SFP+ |

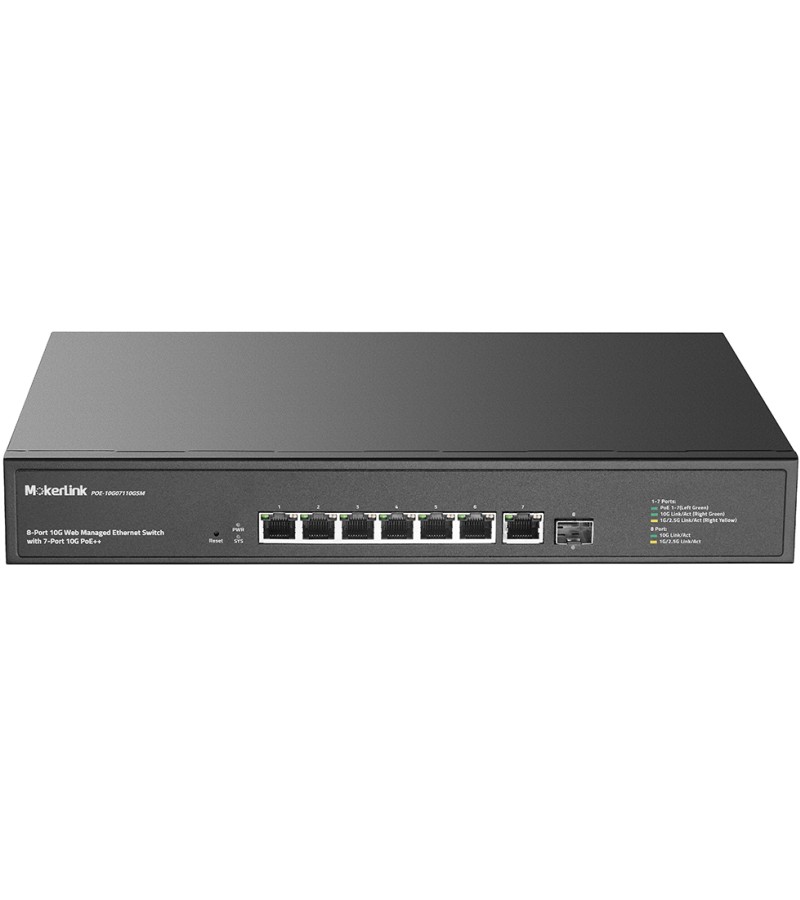

| Ethernet Port | 7*10G RJ45 ports + 1*10G SFP+ port |
| Switching Capacity | 160Gbps |
| Throughput | 119.04Mpps |
| Packet Buffer | 12Mbit |
| MAC Address | 16K |
| Jumbo Frame | 10KBytes |
| Transfer Mode | Store and forward |
| Network protocol | IEEE802.3 (Ethernet) IEEE802.3u (Fast Ethernet) IEEE802.3ab (Gigabit Ethernet) IEEE 802.3bz (5G Ethernet) IEEE 802.3z (Gigabit Ethernet) IEEE 802.3ae (10G Ethernet) IEEE802.3x (Flow Control) |

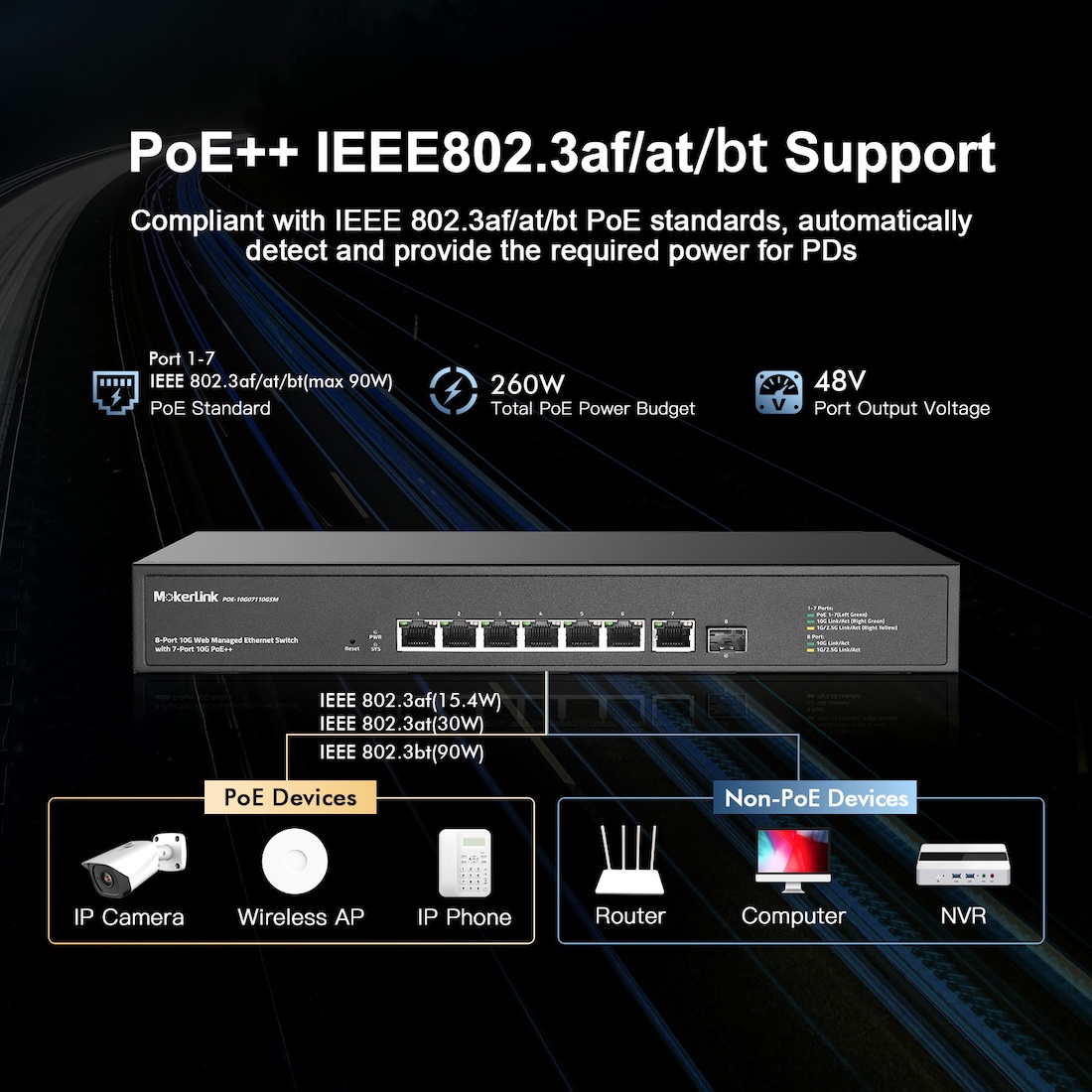

| PoE Protocol | IEEE802.3af (15.4W) IEEE802.3at (30W) IEEE802.3bt (90W) |
| PoE Pin | 1/2 +, 3/6- |
| PoE Power Budget | Max. 300W, Port 1-7 PoE power output <90W |
| Lighting Protection | Surge Protection: Common mode 4KV, differential mode 2KV; Electrostatic ESD: Air 8KV, Contact 6KV |
| Working Environment | Operating temperature: -10～+55°C；5%～90% RH Non coagulation, Storage temperature: -40～+75°C；5%～95% RH Non coagulation |

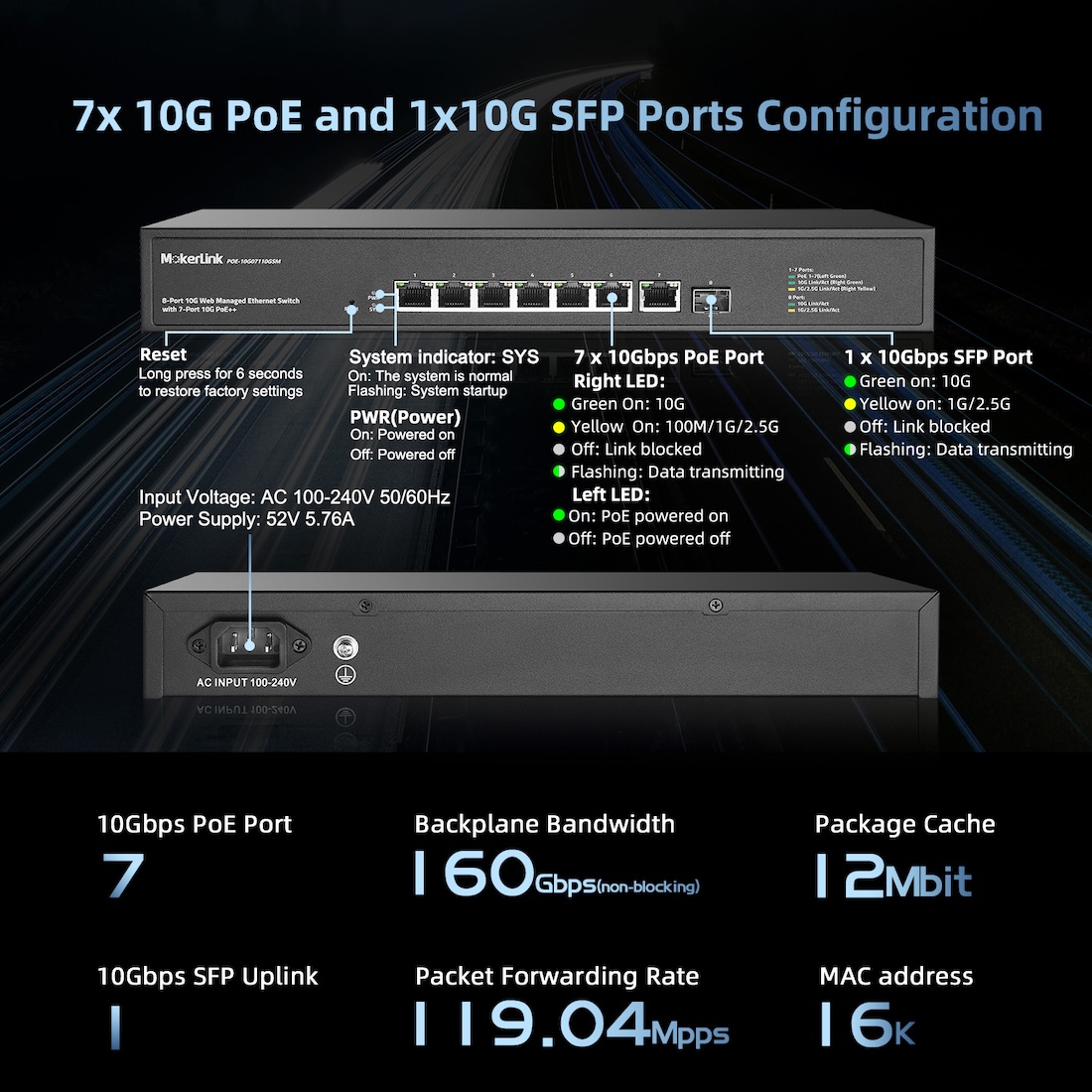

| LED Indicator | PWR Green LED On: Powered on, Off: Powered off; SYS Green LED On: The system is normal, Flashing: System startup in progress; 1-7 Right Yellow LED,Green LED Green Led On: 10G Link normal, Yellow Led On: 100M/1G/2.5G Link normal, Off: Link blocked, Flashing: Data transmitting; PoE Left Green LED On: PoE powered on, Off: PoE powered off; 8 port Green LED ,Yellow LED Green LED on: 10G link Yellow LED on: 1G/2.5G link, Off: Link blocked, Flashing: Data transmitting; RESET Long press for 6 seconds to restore factory settings |
| Structure Size | Product Dimensions :320*222*45mm Packaging Dimensions : 370*290*85mm Product Net Weight: 2kg Product Gross Weight:2.4kg |
| Installation | Desktop/Rack Mount |
| Shell | Black Color, Metal Shell |

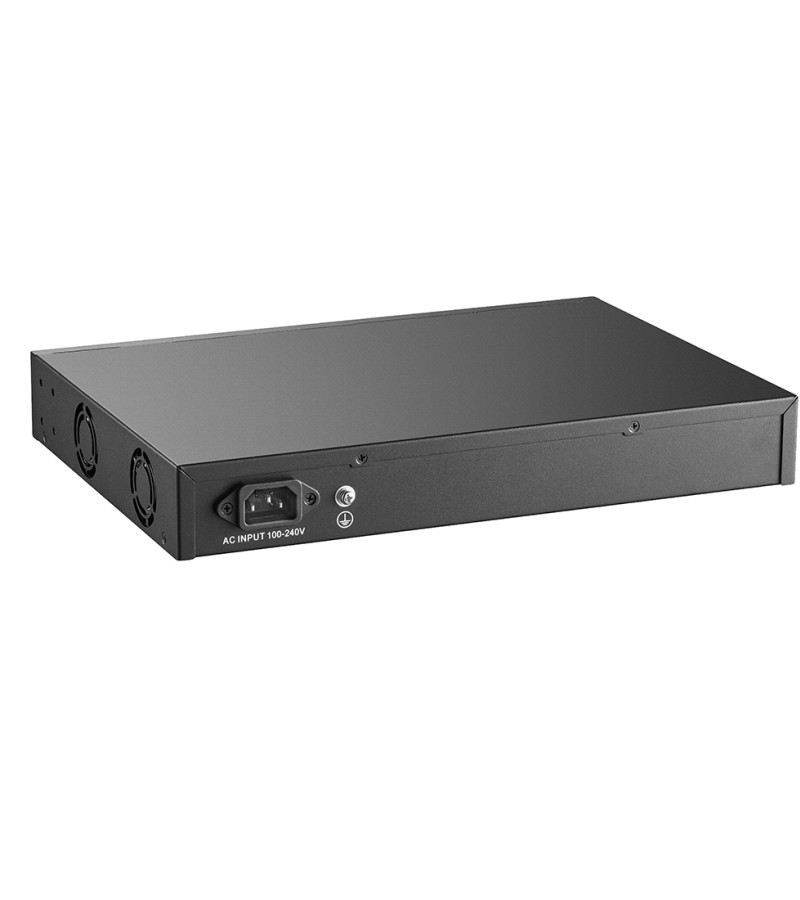

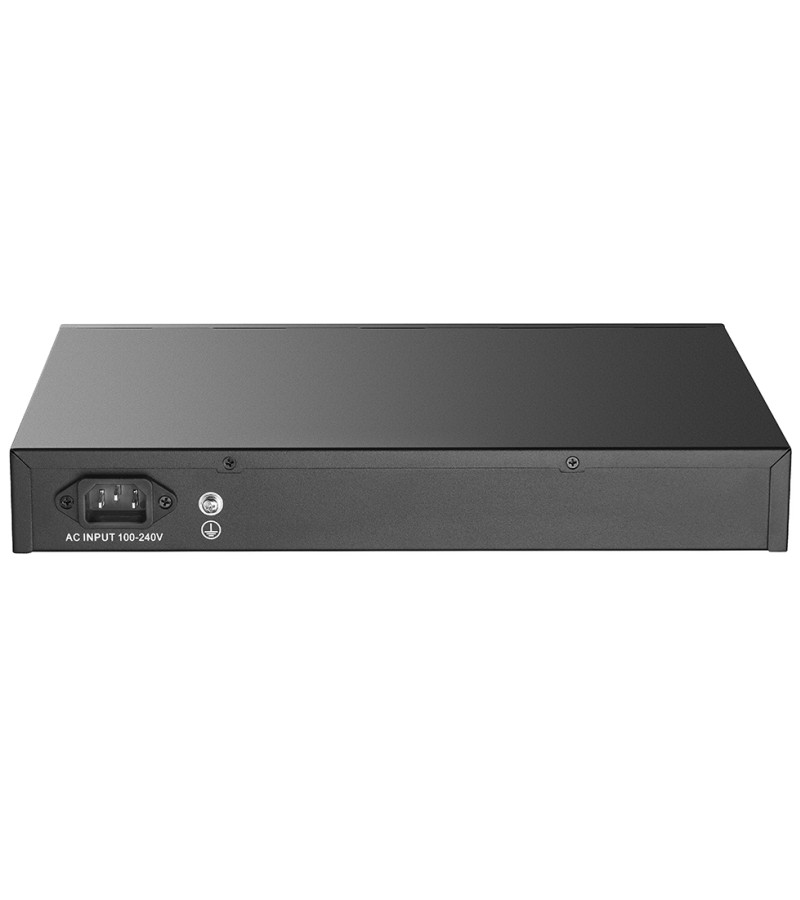

| Power Voltage | AC 100-240V 50/60Hz, DC 52V5.76A |

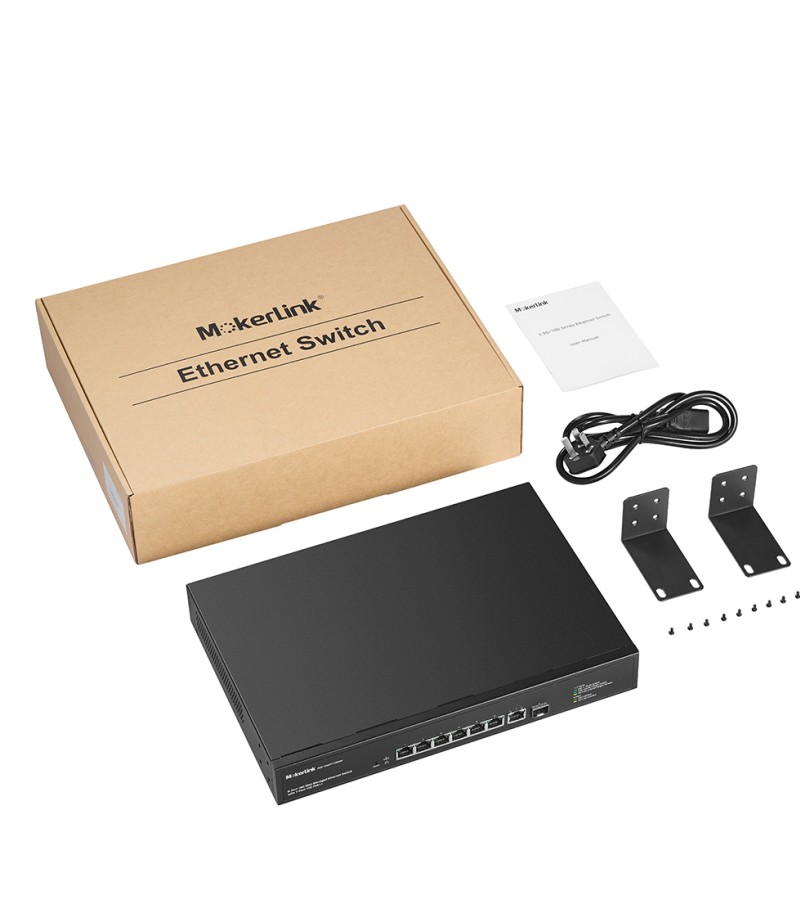

| Package List | Switch 1pcs, Manual 1pcs, Power Cable 1pcs |
| Software Function | Layer 2 Management Features, VLAN, QoS, STP, IGMP, Trunk |
