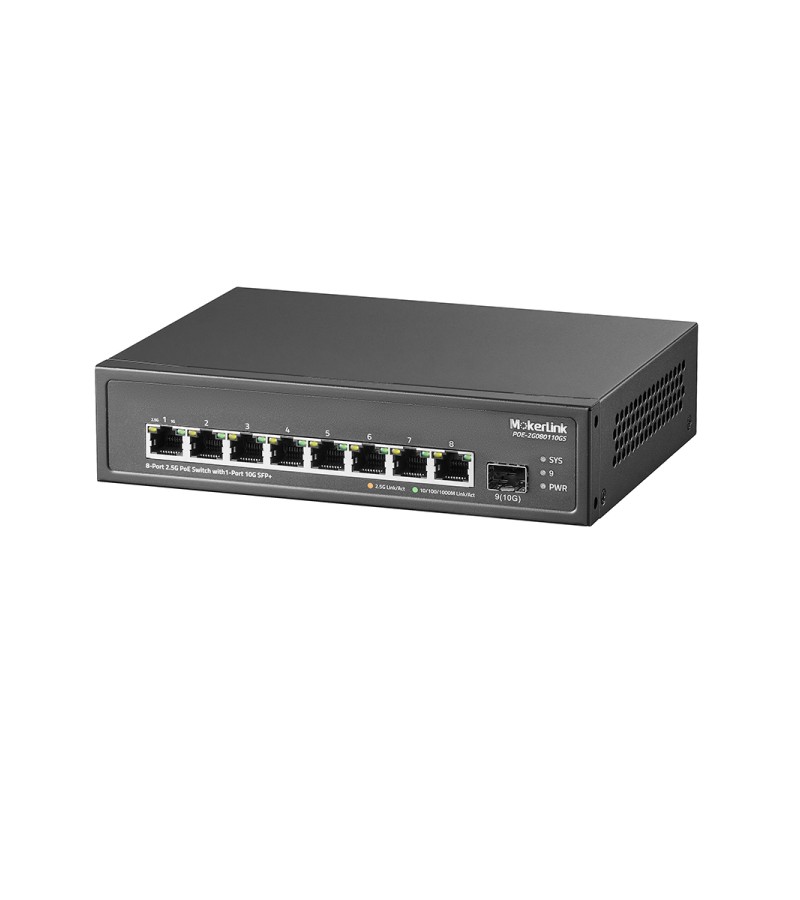

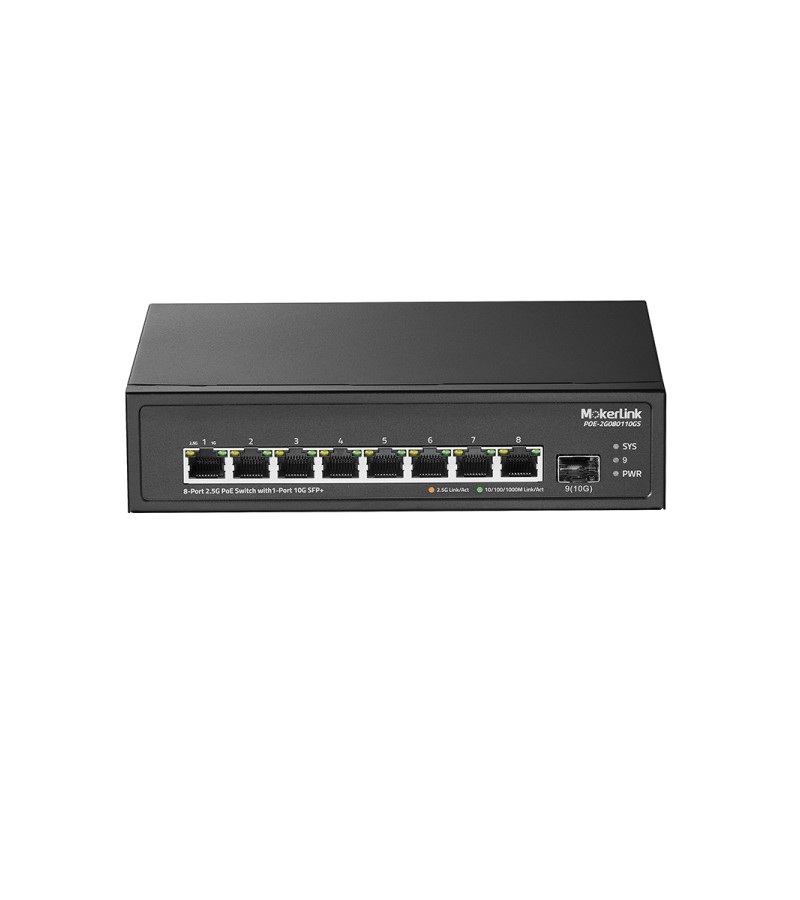

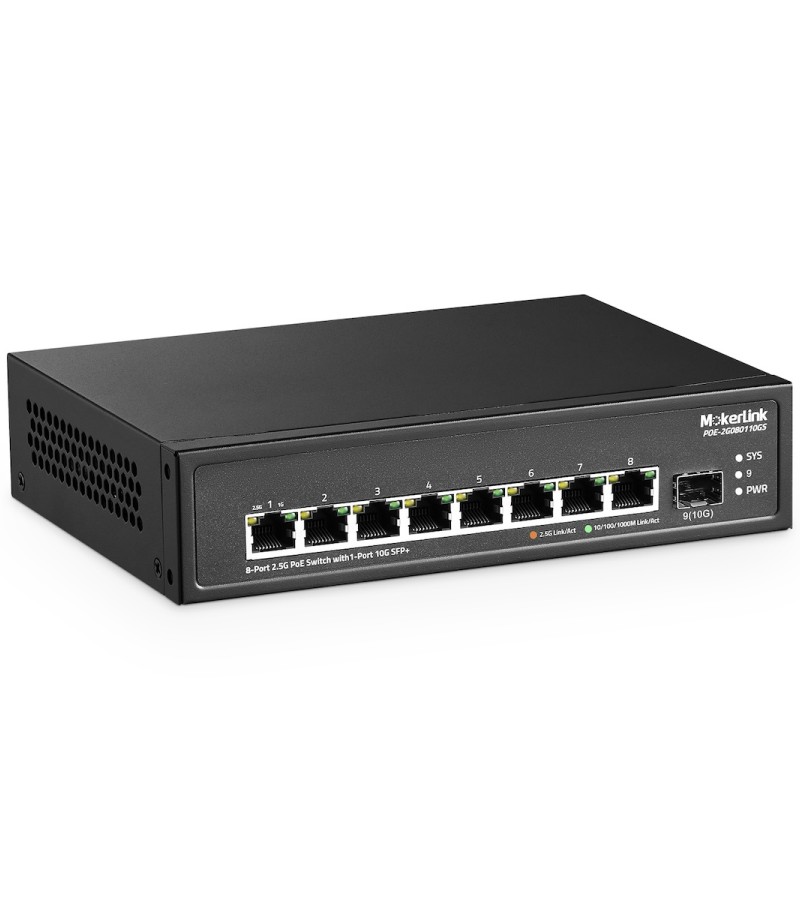

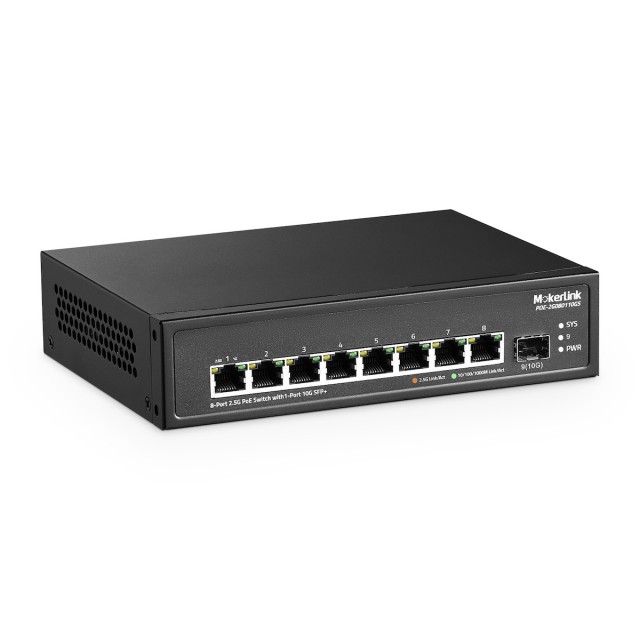

MokerLink 8 Port 2.5G PoE Switch with 10G SFP+ Slot, 8 x 2.5G Base-T Ports Compatible with 10/100/1000Mbps, IEEE8023af/at PoE 120W, Metal Unmanaged Fanless Small Network Switch
8 x 2.5G Ethernet Ports, compliant IEEE802.3bz (2.5G) standard, support 10/100/1000M/2.5G adaptive. 1 x 10G SFP Port(compatible 1G/2.5G Module, not include SFP Module). 60Gbps backplane bandwidth, Port 1-8 support IEEE 802.3af/at PoE, each port max 30W, built-in power supply, whole Power 125W. Unmanaged Plug and Play, metal casing, fanless design
$109.99
Price drop reminder
- Brand: MokerLink
- Product Code: POE-2G080110GS
- Availability: In Stock
[Product overview]
9 Port 10 Gigabit uplink 2.5G POE switch,Adopting a high-quality and high-speed network chip solution, this product thoroughly solves the problem of high noise when deploying small switches in office environments through a fanless and silent design. This switch has 8* 100/1000/2500M POE ports and 1*10G SFP+ port, providing seamless connection for 100/1000/2500M Ethernet, making it easy to manage and maintain. This product can be widely used in security network video monitoring, hotels, campuses, small and medium-sized enterprise network engineering, and other occasions.
[Main Features]

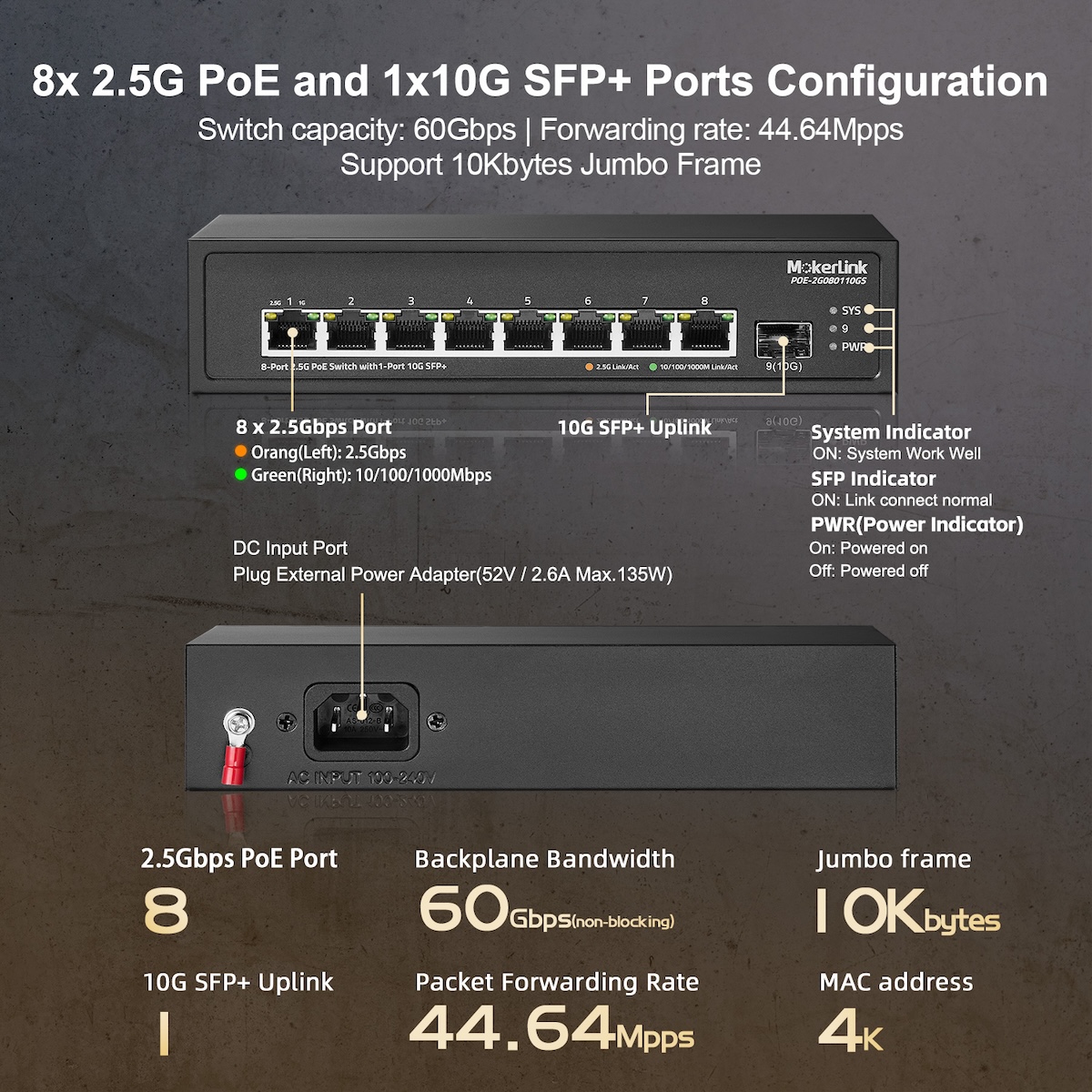

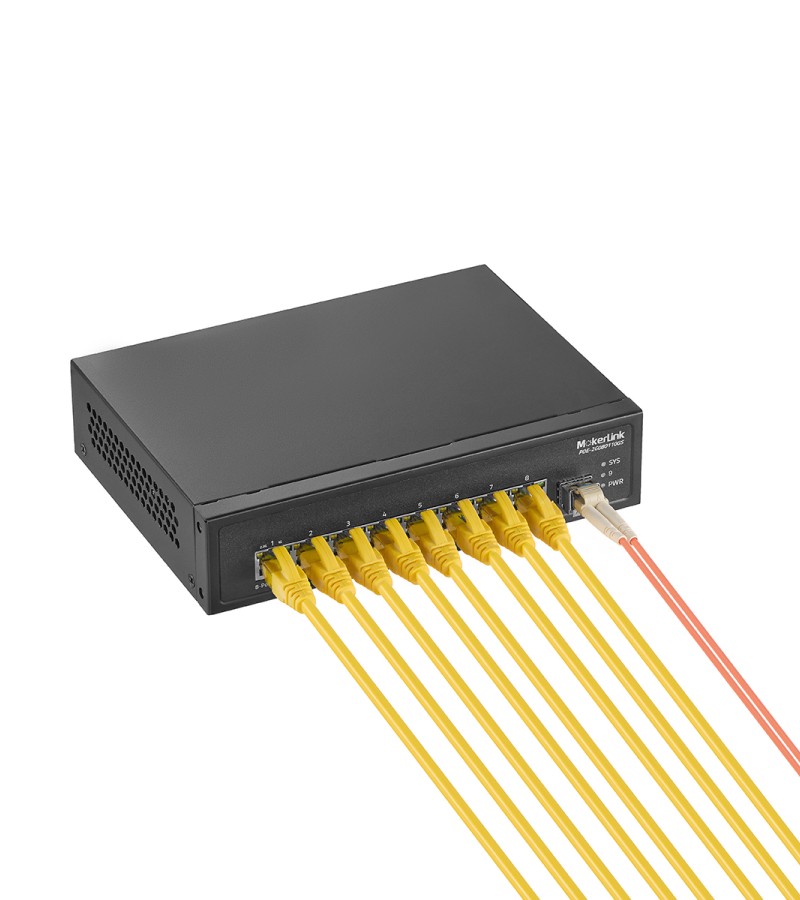

- 8*100/1000/2500M POE Port+1*10G SFP Port；
- Support 802.3, IEEE802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x standard；
- Ethernet Ports support 100/1000/2500M self- adaptive；
- Support PoE QoS Priority，priority ranges from 1 to 8. Enabled by default；
- Supports automatic port flipping（Auto MDI/MDIX）；
- Panel indicator monitoring status and help failure analysis；
- Flow control mode: IEEE 802.3X standard for full duplex, and Back Pressure standard for half duplex；
- Support Surge protection：Common mode 4KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV.
[Application Environment]
- Subway optical broadband network: telecommunication, cable TV, network system integration, etc.
- special broadband network: applicable to financial, government, oil, railways, electricity, public security, transportation, education and other industries.
- Multimedia transmission: integrated transmission of image, voice and data, suitable for remote teaching, conference TV, video telephone and other applications.
- Real-time monitoring: real-time control signal, image, data synchronous transmission.
Ask Question About Product
Note: HTML is not translated!
| Ethernet Switch Hardware Specifications | |
| Product Model | POE-2G080110GS |
| Product Name | 8-Port 2.5G Unmanaged PoE Switch with 1-Port 10G SFP+ |
| Ethernet Port | 8*10/100/1000/2500Base-TX PoE ports + 1*1G/2.5G/5G/10G uplink SFP+ port |
| Switching Capacity | 60Gbps |
| Throughput | 44.64Mpps |
| Packet Buffer | 8.1 Mbit |
| MAC Address | 4K |
| Jumbo Frame | 12Kbyte |
| Transfer Mode | Store and forward |
| Network protocol | IEEE802.3 (Ethernet), IEEE802.3u (Fast Ethernet), IEEE802.3ab(Gigabit Ethernet), IEEE 802.3bz(5G Ethernet), IEEE 802.3z(Gigabit Ethernet), IEEE 802.3ae(10G Ethernet), IEEE802.3x (Flow control) |

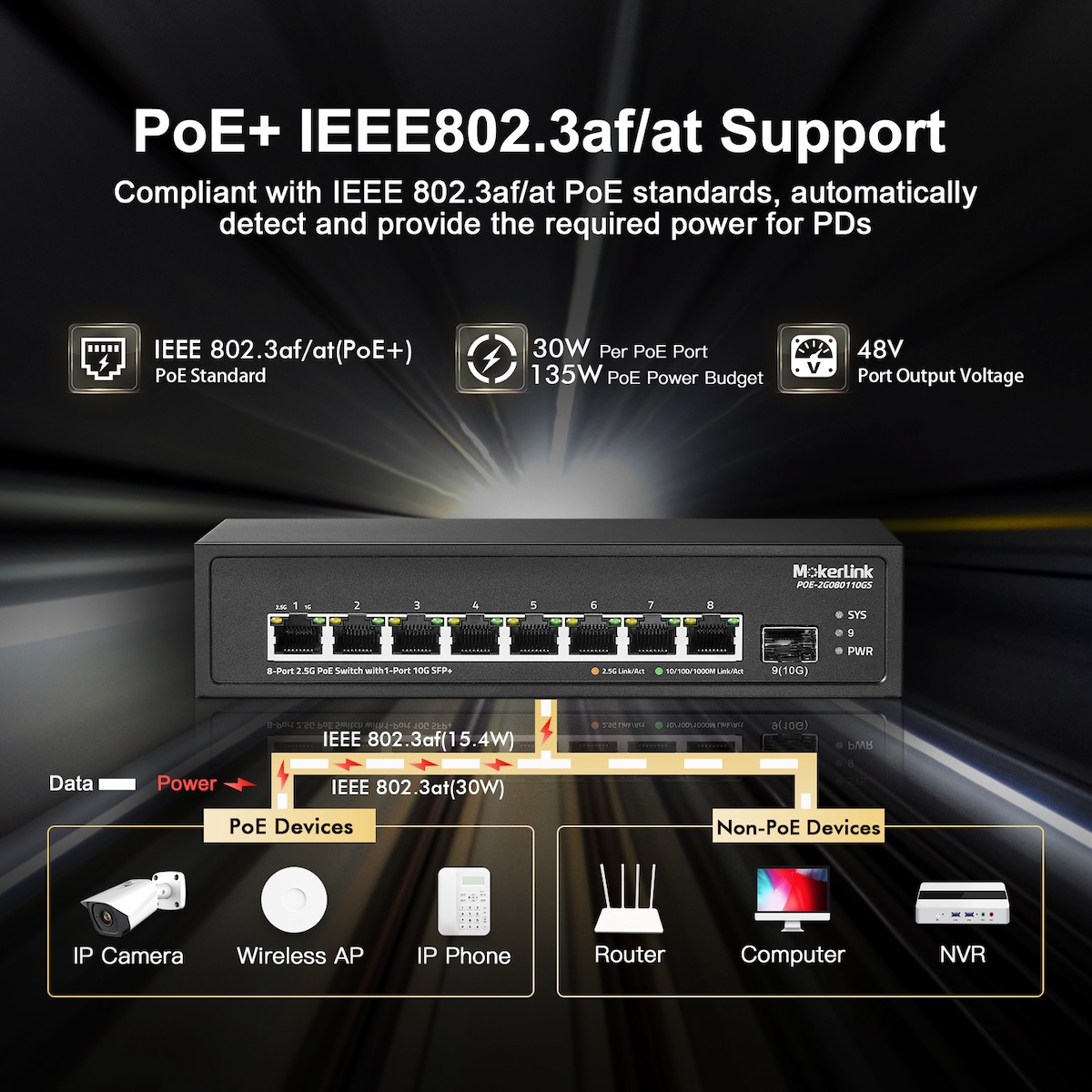

| PoE Protocol | IEEE802.3at (30W), IEEE802.3af (15.4W) |
| Fiber Medium | Multimode optical fiber: 50/125, 62.5/125, 100/140um Single-mode optical fiber: 8/125, 8.7/125, 9/125, 10/125um |
| Lighting Protection | Common mode 6KV;Differential mode 2KV;ESD: Air 8KV, Contact 6KV |
| Working Environment | Operating temperature: -10～+55°C；5%～90% RH Non coagulation, Storage temperature: -40～+75°C；5%～95% RH Non coagulation |
| LED Indicator | PWR，SYS，Link/ACT LED,seep LED |
| Structure Size | Product size: 270*181*44mm（LxWxH） Product weight: 1.5kg |

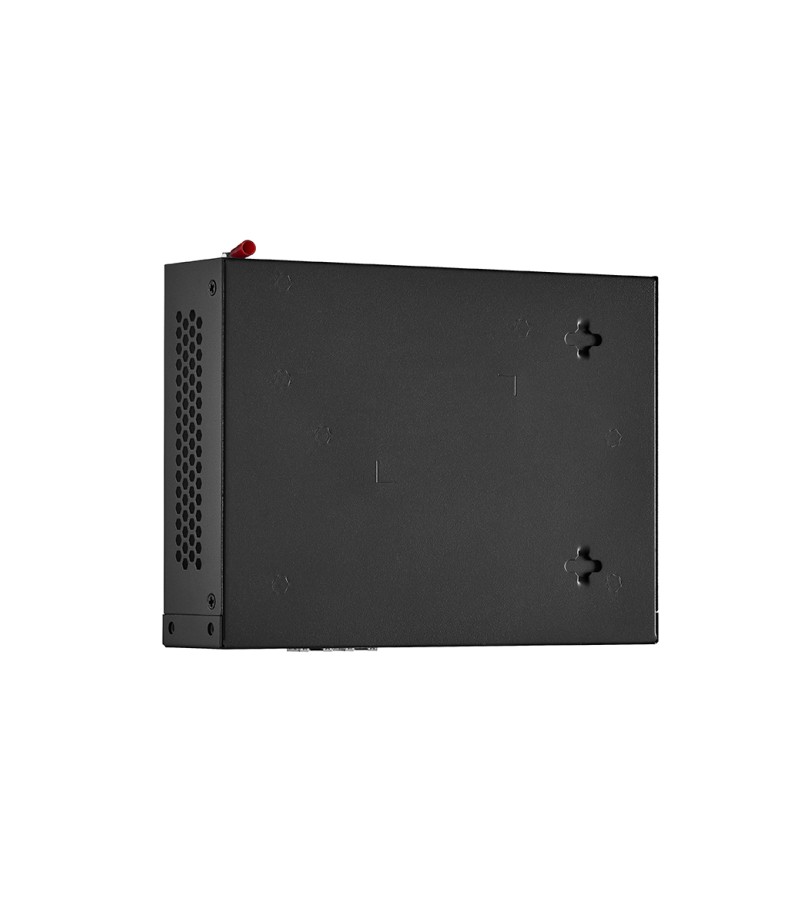

| Installation | Desktop/Wall Mount |
| Shell | Black Color, Metal Shell |
| Power Voltage | Built-in power AC 100~240V 50/60HZ MAX 125W |

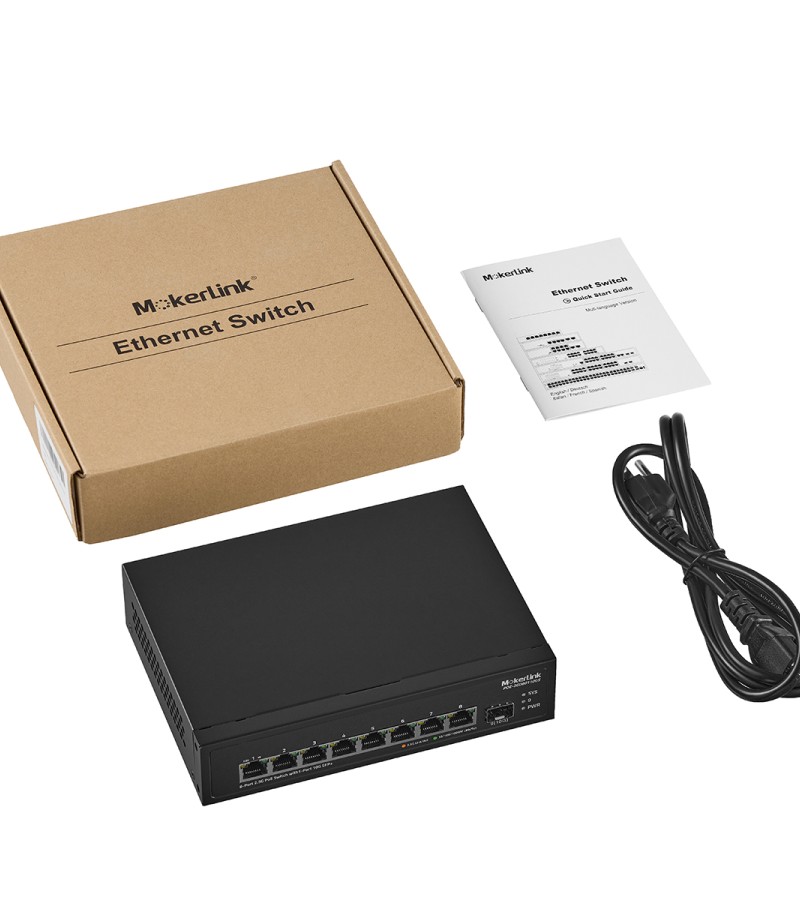

| Package List | Switch 1pcs, Specification 1pcs, Power adapter 1pcs |
