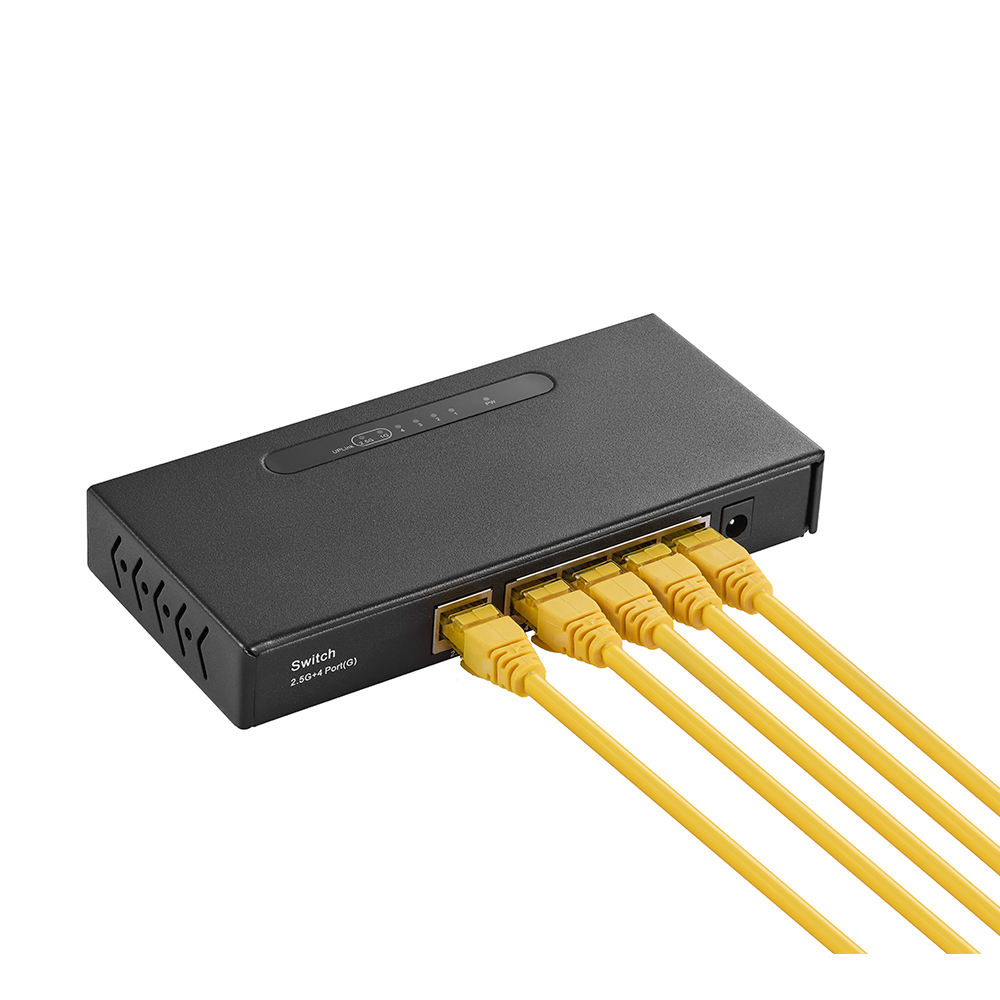

5 Port Multi Gigabit Switch, 1 x 2.5 Gigabit and 4 x Gigabit Ethernet RJ-45 Ports, Metal Fanless, Desktop and Wall Mount, Unmanaged Plug & Play Network Switch
1 x 2.5 Gigabit port and 4 x Gigabit ports, Unmanaged no need configure, power and port LED light, clearly display working status, Double side cooling holes, fanless design, 3W lower energy consumption,Widely Used for various application, such as home entrainment, 4K video, gaming PC, NAS, PCIe Adapter, Server, WiFi 6 AP and more.
- Product Code: G05-0412G
- Availability: In Stock
G05-0412G ethernet unmanaged switch with line speed forwarding capability per port. It has good network adaptability for applications such as security monitoring, diskless startup and wireless networking.
- 1*10M/100M/1G/2.5Gbps RJ45 port + 4*10M/100M/1G ports for high-speed transmission.
- Up to 13G backplane bandwidth, 9.67M packet forwarding rate, and support 9K jumbo frame transmission.
- Energy saving technology is adopted to automatically adjust the signal strength by detecting the length of network cable and workload, so as to effectively reduce energy consumption.
- Plug and play, no management required.
- Dynamic LED indicator provides simple working status prompt and troubleshooting.
- Wall mount support.
2.5G Port Configuration
The switch supports speeds ranging from 10Mbps to 2.5Gbps. your network devices can run at their designated speeds without any limitations. It is also backward compatible. If you already have the traditional Cat5E and Cat6 cables, you won't need to buy new ones.
Plug and Play
Unmanaged 2.5g ethernet switch, no configuration required. Simply plug a device into the network. It automation begins.
Energy Efficient Ethernet (EEE)
Energy saving technology is adopted to automatically adjust the signal strength by detecting the length of network cable and workload, so as to effectively reduce energy consumption.
Fanless and Noiseless
This is a silent and perfectly noiseless 2.5g ethernet switch. All the internal hardware is passively cooled which is very beneficial for home and office applications that require a silent or noiseless environment.
LED Indicator
System status and speed can be determined through the activity of the LEDs on the switch.
Lightning Protection
2.5g ethernet switch support 4KV port protection and 1.5KV power supply protection. There are specialized surge protection units for the network switches which helps in cutting the supply off by defusing before the voltage reaches the customer premise equipment.
Ask Question About Product
| Ethernet Switch Hardware Specifications | |
| Product Model | G05-0412G |
| Product Name | 5 port Gigabit ethernet switch with 1 port 2.5G |
| Ethernet Port | 1*2.5G RJ45 port + 4*1G Uplink ports |
| Switching Capacity | 13Gbps |
| Throughput | 9.67Mpps |
| Packet Buffer | 1Mbit SRAM |
| MAC Address | 2K |
| Jumbo Frame | 9620Byte |
| Transfer Mode | Store and forward |
| Mean Time Between Failure | 100000 hour |
| Network protocol | IEEE802.3 (10Base-T) IEEE802.3u (100Base-TX) IEEE802.3ab (1000Base-TX) IEEE802.3z(1000Base-FX) IEEE 802.3bz(2500base-TX) IEEE802.3x (Flow control) |
| Industry Standard | EMI: FCC Part 15 CISPR (EN55032) class A EMS: EN61000-4-2 (ESD)、 EN61000-4-4 (EFT) EN61000-4-5 (Surge) |
| Network Medium | 10BASE-T: Cat3,4,5 UTP(250 meter), 100BASE-TX: Cat5 or later UTP(150 meter), 2500/1000BASE-TX: Cat6 or later UTP(150 meter) |
| Lighting Protection | General Mode 6KV, Differential Mode 4KV, ESD 15KV |
| Security Certificate | CE、FCC、RoHS |
| Working Environment | Working Temperature：-20~50°C Storage Temperature：-40~85°C Working Humidity ：10%~90%，non-condensing Storage Temperature：5%~90%，non-condensing Working Height：Maximum10,000 feet Storage heigh：Maximum 10,000 feet |
| LED Indicator | PWR(power supply), 1-5 Green(1G Link&Data), 1 Orange(2.5G Link&Data) |
| Structure Size | Product Dimension (L*W*H): 123mm*70mm*23mm Weight: 0.6kg |
| Installation | Desktop and Wall Mount |
| Shell | Black, Metal Shell |
| Power Voltage | Input Voltage ：DC 5V/1A |
| Package List | Switch 1 pcs, Power cord 1 pcs, User manual 1 pc, Brackets 1 pair |
